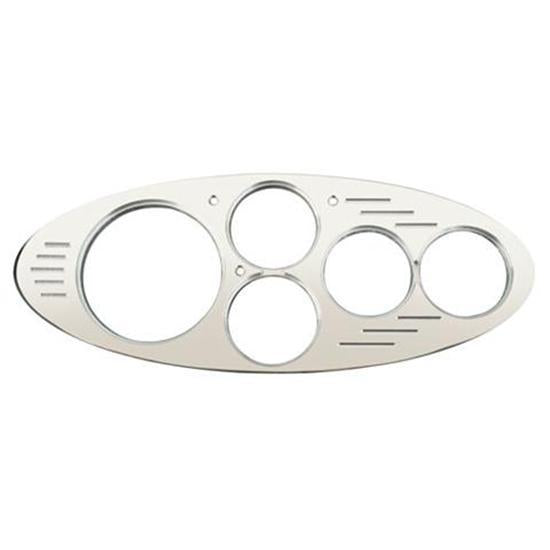

Stewart Warner Dash Panels for 1932 Ford

These beautiful billet aluminum dash panels are the perfect finishing touch for your interior. These are held intoa factory dash or equivalent fiberglass dash withfour tabs that attach to the back of the billet panel with 4 machine screws, which are included. This billet panel sits down into the recessed lip of the factory or aftermarket dash. For use with Stewart Warner gauges. Stewart Warner gauges only.This panel features three drilled and recessed holes that can be used for 5/32" mini LED indicator lights such as 911-31050. The inside diameter of the hole is 5/32" and the recess around the hole is nearly 1/4" wide for the light bezel around the bulb. The three holes would serve for high beam indicator, and left and right turn indicators.Entire thickness of this panel is 3/8" with 1/4" going through the dash opening and the remaining 1/8" being the lip that sits into the factory style recessed lip of the dash. Measures approximately 4-3/4" high and 12" wide.

• Aluminum dash panels
• 3 1/8" & 2 1/16" gausizes
• Stewart Warner gauges
